Troubleshooting Common Circuit Breaker Problems: A Step-by-Step Repair Guide

Understanding Circuit Breaker Basics

Circuit breakers are essential components in any electrical system, responsible for protecting circuits from overloads and short circuits. When a circuit breaker fails, it can cause disruptions and potential hazards. Understanding how to troubleshoot common circuit breaker problems is key to ensuring safety and functionality in your home or business.

Identifying Common Circuit Breaker Issues

Problems with circuit breakers can manifest in several ways, such as frequent tripping, a breaker that won't reset, or a burning smell. Each of these symptoms can indicate different underlying issues. By identifying the specific problem, you can effectively target your troubleshooting efforts.

• Frequent Tripping: This usually indicates an overloaded circuit or a short circuit.
• Breaker Won’t Reset: This could be due to a persistent fault in the circuit.
• Burning Smell: This is a serious issue and might suggest overheating or damaged wiring.

Step-by-Step Troubleshooting Guide

Addressing circuit breaker problems involves a methodical approach. Below is a step-by-step guide to help you troubleshoot effectively:

Step 1: Safety First

Before starting any troubleshooting process, ensure that all safety precautions are in place. Turn off all devices connected to the circuit and use rubber gloves and insulated tools to prevent electrical shock.

Step 2: Visual Inspection

Conduct a visual inspection of the circuit breaker panel. Look for signs of damage, such as scorched marks or frayed wires. If you notice any visible damage, it's crucial to call a professional electrician immediately.

Step 3: Test the Circuit Breaker

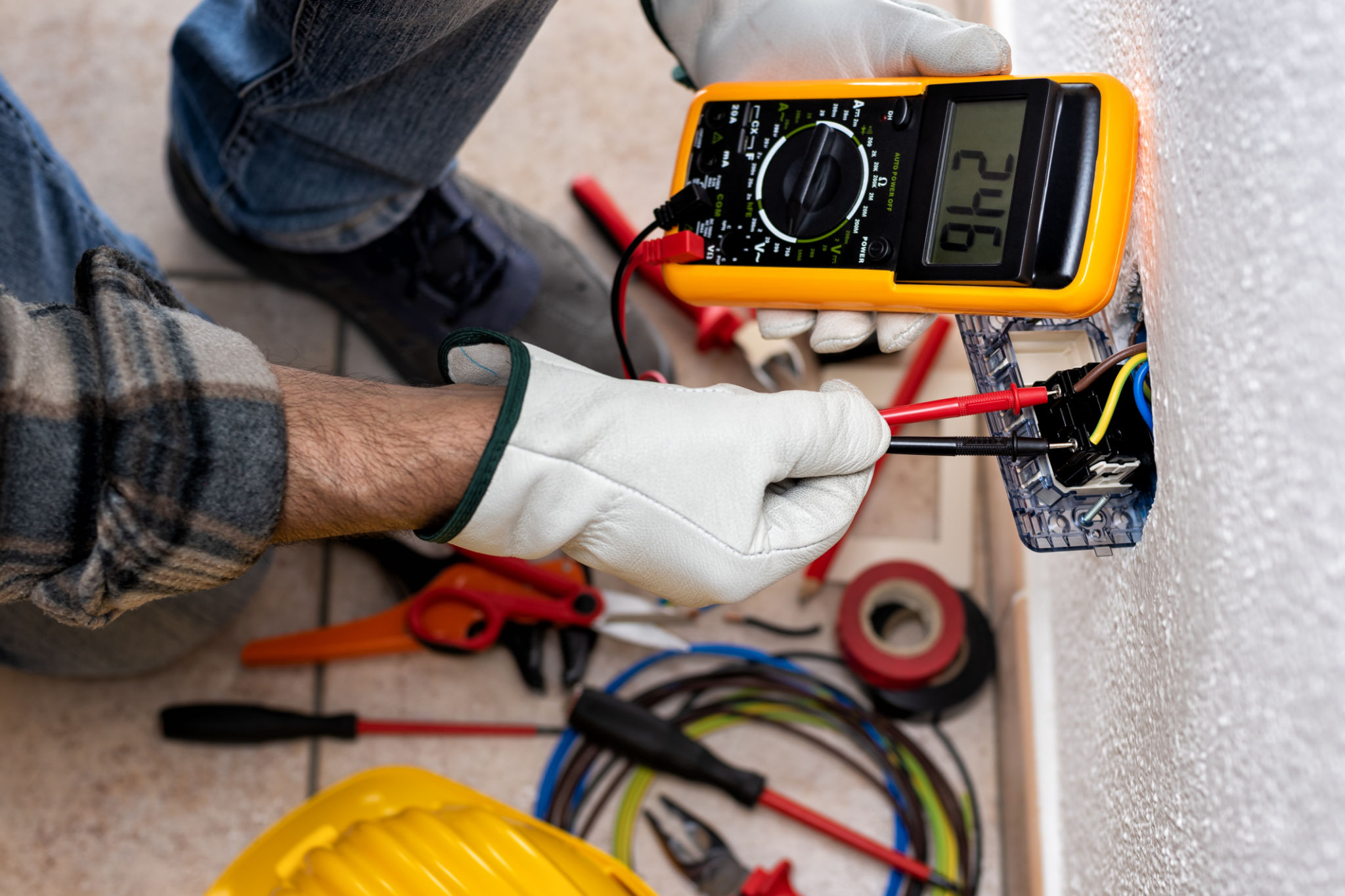

To test the breaker, reset it by switching it off and then on again. If it trips immediately, there might be a serious fault in the circuit. Use a multimeter to measure the voltage and ensure that it is within the expected range.

Advanced Troubleshooting Techniques

If the basic steps do not resolve the issue, advanced troubleshooting techniques may be necessary. Consider these additional methods:

• Check for Overloads: Disconnect some devices from the circuit to reduce the load and see if this resolves the issue.
• Inspect for Short Circuits: A short circuit can cause frequent tripping. Inspect all connected devices and wiring for faults.
• Replace the Circuit Breaker: If the breaker itself is faulty, replacing it may be the only solution.

When to Call a Professional

If troubleshooting steps do not solve the problem or if you're uncomfortable working with electrical systems, it is best to call a licensed electrician. They have the expertise and tools necessary to safely and effectively resolve complex electrical issues.

Troubleshooting circuit breaker problems requires patience and attention to detail. By following these steps, you can address many common issues and ensure the safety and reliability of your electrical system.
